Max lifting capacity: 80tons (72mt)
Max Boom configuration: 144’ main boom and 58’ jib
Max Line Pull: 18,200lbs on single line, 585fpm max line speed.
Transport full boom and jib on one lowbed with one b-train cw load.
Dimensions – H: 12’6”’; W: 10’10”
| Length | Weight |
|---|---|
| 30ft 45ft 80ft 110ft |
44,000lbs 26,000lbs 9,500lbs 4,600lbs |

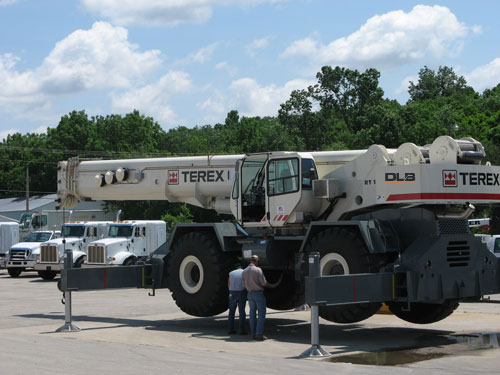

Download Terex RT1120 Hydraulic Boom Tech Data and Load Chart – PDF
Max lifting capacity: 130tons (120mt)
Max Boom configuration: 160’ main boom and 59’ jib with two 26’ inserts
Max Line Pull: 19,000lbs on single line, 562fpm max line speed.
Transport full boom and jib on one lowbed.
Dimensions – H: 13’8”; W: 11’8”
| Length | Weight |
|---|---|
| 30ft 45ft 80ft 110ft 130ft |
76,900lbs 42,000lbs 17,000lbs 9,000lbs 5,000lbs |
